How U Put A Huion Draw Tablet Back Together
Time Required
3 - viii minutes
- How to fix huion pen 420 Dropped-drawing while hovering 3 steps
Member-Contributed Guide
An awesome member of our customs made this guide. It is not managed by iFixit staff.
Introduction
If you drib your huion pen and it starts drawing on its own while hovering, information technology could hateful the inner was pushed in and the pen constantly on. This guide volition aid yous adjust the inner as it supposed to be.
Parts
No parts specified.
-
-
Remove the buttons offset. (employ a apartment screw driver or something similar) (pic 1)
-
Push the argent tab & black tab down and push upwardly to remove the mainboard
-
twist the white cylinder to accommodate the height commencement of the nub
-
-
-
Utilise a soldering atomic number 26 to remove the wire (remember which one goes where.) (flick ane)
-
Mark the white plastic and the blackness 1 (so you lot know when to cease when screw it back) (moving-picture show 2)
-
Unscrew the white role. Merely ane or two turns to bring it dorsum to the original position. If yous would similar to encounter what'due south inside, remember which way the leap goes when unscrew the whole thing. It's revrsed in this pic (pic 3)
-
-
-

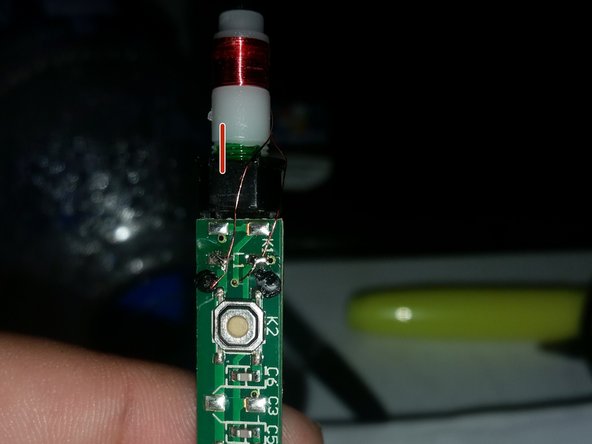

Put everything back together. Stop the white plastic at the marker. Put the tip on to encounter if the spring works (the tip moves freely; turn the white plastic dorsum or forth to go a blueprint pressure sensitivity).
-
Remember to pull the metal upwardly or else the pen won't take power. (pic 2)
-
Almost done!
To reassemble your device, follow these instructions in reverse order.
Conclusion
To reassemble your device, follow these instructions in reverse gild.
